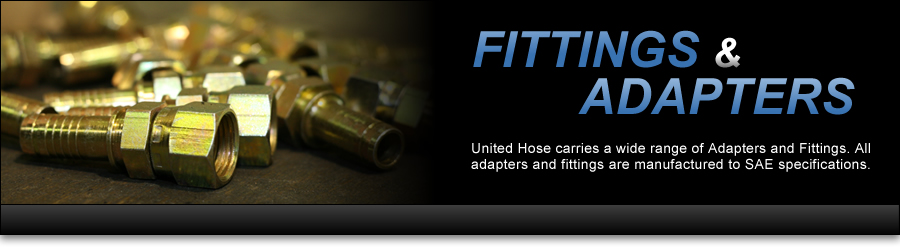

Fittings & Adapters

Fittings & Adpaters Product Menu


  1 & 2 Wire Combination Steel Ferrule-Skive Required

  1 & 2 Wire Combination Non-Skive Steel Ferrule

  1 & 2 Wire Combination Aluminum Ferrule-Skive Required

  NPTF Solid Male Stem

  JIC 37° Swivel Female Stem

  ORB Solid Male Stem


  NPTF Swivel Male Stem

  JIC 37° Solid Male Stem

  JIC 37° Swivel Female Stem - 45° Bent Tube Short Drop

  JIC 37° Swivel Female Stem - 90° Bent Tube Short Drop

  JIC 37° Swivel Female Stem - 90° Bent Tube Long Drop
1 & 2 Wire Combination Steel Ferrule-Skive Required

1 & 2 Wire Combination Steel Ferrule-Skive Required

For SAE100 R16 & SAE100 R17
PART NUMBER ID L OD ID
UH-204-200
1/4
1
0.81
0.63
UH-206-200
3/8
1
0.94
0.76
UH-208-200
1/2
1.25
1.13
0.88
  Back to Top
1 & 2 Wire Combination Non-Skive Steel Ferrule

1 & 2 Wire Combination Non-Skive Steel Ferrule

For SAE100 R16
PART NUMBER ID L OD ID
UH-504-500
1/4
1
0.87
0.63
UH-506-500
3/8
1
1.06
0.79
UH-508-500
1/2
1.23
1.15
0.91
  Back to Top
1 & 2 Wire Combination Aluminum Ferrule-Skive Required

1 & 2 Wire Combination Aluminum Ferrule-Skive Required

For SAE100 R16 & SAE100 R17
PART NUMBER ID L OD ID
UH-604-200
1/4
1.03
0.77
0.58
UH-606-200
3/8
1.03
0.93
0.72
UH-608-200
1/2
1.25
1.13
0.88
  Back to Top
NPTF Solid Male Stem
NPTF Solid Male Stem
PART NUMBER HOSE ID THREAD HEX LENGTH CUTOFF
UH-204-104
1/4
1/4 - 18
5/8
1.94
1.03
UH-204-106
1/4
3/8 - 18
2/3
1.94
1.03
UH-206-106
3/8
3/8 - 18
2/3
1.97
1.06
UH-206-108
3/8
1/2 - 14
7/8
2.22
1.31
UH-208-108
1/2
1/2 - 14
7/8
2.47
1.31
  Back to Top
JIC 37 Swivel Female Stem
JIC 37 Swivel Female Stem
PART NUMBER HOSE ID THREAD STEM HEX NUT HEX LENGTH CUTOFF
UH-204-604
1/4
7/16 - 20
5/8
9/16
1.995
1.07
UH-204-606
1/4
9/16 - 18
5/8
3/4
2.035
1.12
UH-206-606
3/8
9/16 - 18
11/16
3/4
2.03
1.1
UH-206-608
3/8
3/4 - 16
11/16
7/8
2.165
1.245
UH-208-608
1/2
3/4 - 16
13/16
7/8
2.47
1.31
  Back to Top
ORB Solid Male Stem
ORB Solid Male Stem
PART NUMBER HOSE ID THREAD HEX LENGTH CUTOFF
UH-204-704
1/4
1/16 - 20
5/8
1.7367
0.827
UH-204-706
1/4
9/16 - 18
11/16
1.769
0.859
UH-206-706
3/8
9/16 - 18
3/4
1.862
0.952
UH-206-708
3/8
3/4 - 16
7/8
1.937
1.027
UH-208-708
1/2
3/4 - 16
7/8
2.16
1
UH-208-710
1/2
7/8 - 14
1
2.222
1.062
  Back to Top
NPTF Swivel Male Stem
NPTF Swivel Male Stem
PART NUMBER HOSE ID THREAD HEX LENGTH CUTOFF
UH-204-204
1/4
1/4 - 18
11/16
2.365
1.44
UH-206-206
3/8
3/18 - 18
13/16
2.51
1.625
UH-206-208
3/8
1/2 - 14
7/8
2.7
1.81
UH-208-208
1/2
1/2 - 14
1
2.955
1.8
  Back to Top
JIC 37 Solid Male Stem
JIC 37 Solid Male Stem
PART NUMBER HOSE ID THREAD HEX LENGTH CUTOFF
UH-204-504
1/4
7/16 - 20
5/8
1.923
1.013
UH-206-506
3/8
9/16 - 18
11/16
1.965
1.055
UH-206-508
3/8
3/4 - 16
3/4
2.065
1.155
UH-208-508
1/2
3/4 - 16
13/16
2.378
1.218
  Back to Top
JIC 37 Swivel Female Stem - 45 Bent Tube Short Drop
JIC 37 Swivel Female Stem - 45 Bent Tube Short Drop
PART NUMBER HOSE ID THREAD HEX NUT DROP LENGTH CUTOFF
UH-204-S-684
1/4
7/16 - 20
3/4
0.47
2.57
1.69
UH-204-S-686
1/4
9/16 - 18
3/4
0.59
2.89
2.01
UH-206-S-686
3/8
9/16 - 18
3/4
0.59
2.89
2.015
UH-206-S-688
3/8
3/4 - 16
15/16
0.69
3.24
2.2
UH-208-S-688
1/2
3/4 - 16
15/16
0.69
3.24
2.303
  Back to Top
JIC 37 Swivel Female Stem - 90 Bent Tube Short Drop
JIC 37 Swivel Female Stem - 90 Bent Tube Short Drop
PART NUMBER HOSE ID THREAD HEX NUT DROP LENGTH CUTOFF
UH-204-S-664
1/4
7/16 - 16
3/4
0.78
2.3
1.425
UH-204-S-666
1/4
9/16 - 18
3/4
0.92
2.54
1.665
UH-206-S-666
3/8
9/16 - 18
3/4
0.92
2.54
1.67
UH-206-S-668
3/8
3/4 - 16
15/16
1.17
2.635
1.755
UH-208-S-668
1/2
3/4 - 16
15/16
1.17
2.697
1.76
  Back to Top
JIC 37 Swivel Female Stem - 90 Bent Tube Long Drop
JIC 37 Swivel Female Stem - 90 Bent Tube Long Drop
PART NUMBER HOSE ID THREAD HEX NUT DROP LENGTH CUTOFF
UH-204-L-664
1/4
7/16 - 20
3/4
1.8
2.3
1.425
UH-204-L-666
1/4
9/16 - 18
3/4
2.18
2.54
1.675
UH-206-L-666
3/8
9/16 - 18
3/4
2.18
2.54
1.665
UH-206-L-668
3/8
3/4 - 16
15/16
2.43
2.76
1.88
UH-208-L-668
1/2
3/4 - 16
15/16
2.43
2.76
1.823
  Back to Top
